▸ Model: LRS-450-24
▸ Brand: Mean Well (Original)
▸ Output: 24V DC / 18.8A (450W)

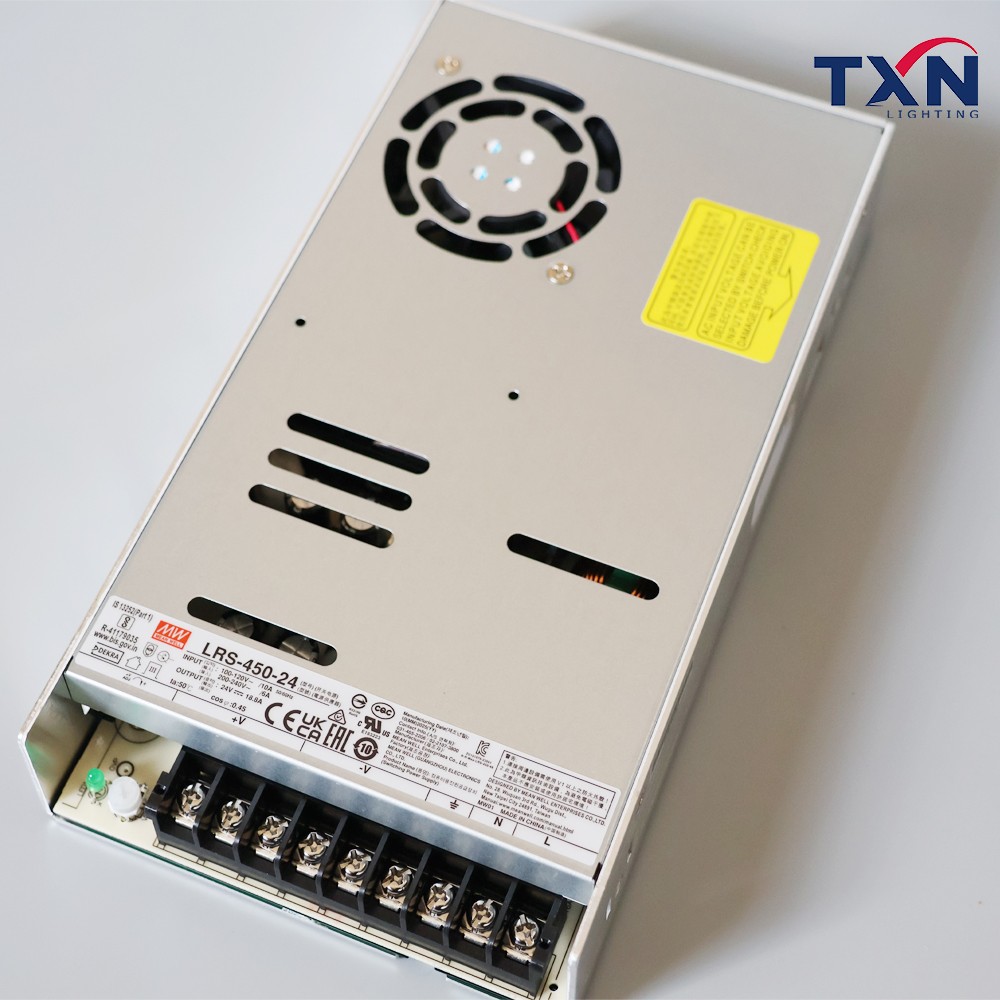

Mean Well LRS-450-24 | 450W 24V Ultra-Slim Switching Power Supply
| Specification | Detail |
|---|---|
| Model Number | LRS-450-24 |
| Output Power | 450W |
| Output Voltage | 24V DC (Adjustable: 21.6 ~ 26.4V) |
| Output Current | 18.8A |
| Input Voltage | 90 ~ 305 VAC / 127 ~ 430 VDC |
| Frequency | 47 ~ 63 Hz |
| Efficiency | 91% (Typical) |
| Cooling Method | Free air convection (Fanless) |
| Dimensions (L×W×H) | 215 × 115 × 30 mm |
| Weight | 1.35 kg |
| Safety Standards | UL62368-1, TUV EN62368-1, EAC 62368-1 |
| EMC Standards | EN55032 (Class B), EN61000-3-2, -3 |
